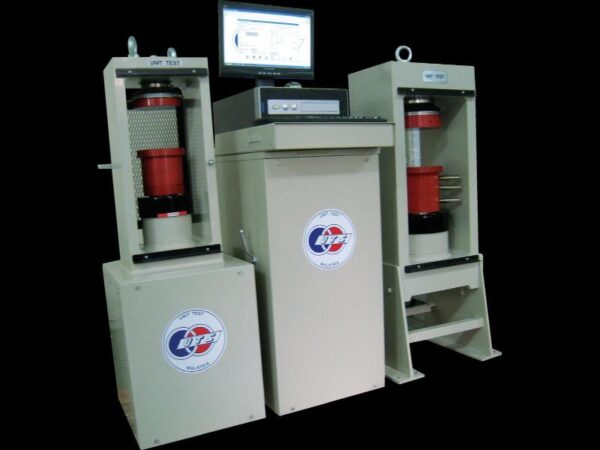

Computerised Automatic Twin Frame Compression (Press) Machine

Standard: BS 1881, EN 12390 Annex A, B, EN 196-1, ASTM C 109

These Computer control automatic Twin Frame machines are designed to test accordance to above relevant standard. The load rate are control by computer according to specify and automatically stop when the maximum load are achieve. Test result and specimen information are automatic calculate in Mpa (N/mm₂) density (kg/m³) and printed or stored in database which can be access at anytime.

1500, 2000, 2500, and 3000kN/250kN Twin Frame Concrete and Cement Compression Test Machine

l  Optional digital top pan balance 12kg x 1gm to connect to Computer

l  Calibrated meet to BS EN 12390, ASTM E4, BS 1610

l  Test 200, 150, 100, 70.7, 50 and 40mm cube, cylinder specimen up to 150mm and 100mm diameter and 40 x 40 x 160mm prism specimen

l  Meet BS 1881 part 115, EN 12390 Annex A (Force Transfer) and ASTM C 109 EN 196-1

l  Concrete Compression Test 0-2000, 2500, 3000kN x 0.1kN per resolution

l  Cement Compression Test 0-250, 300kN, 500kN x 0.01kN per resolution
